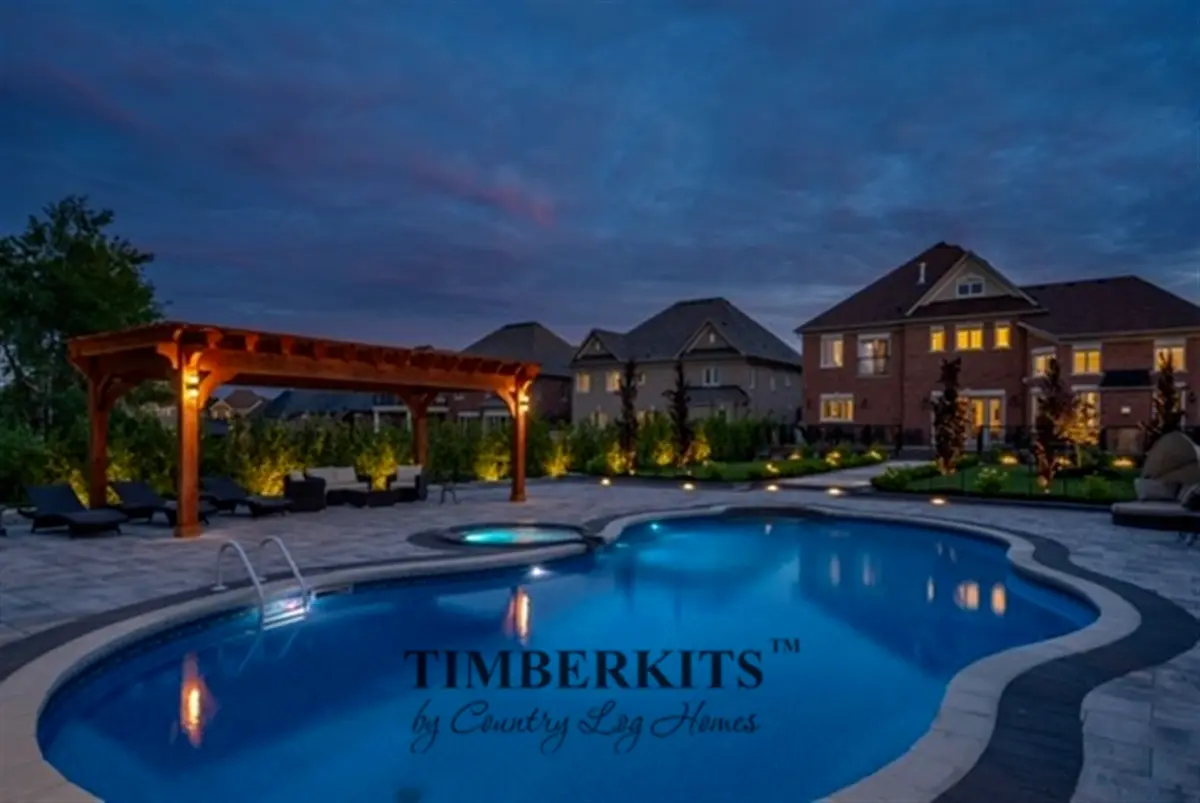

"Create an Oasis of Shade & Sanctuary
in Your Backyard with a Custom-Built,
Heavy Timber Pergola or Pavilion"
A welcoming and dignified extension of your home, a hand-crafted TIMBERKITS™ heavy timber pergola or pavilion creates an inviting and cozy outdoor living area, and is sure to create that element of appeal you have been looking for.
One of the main advantages of heavy timber construction is their unsurpassed strength and durability. TIMBERKITS™ outdoor rooms create a magnificent commanding presence - they don’t have that rickety/spindly look that some other designs/materials have and there is no exposed hardware.
The level of craftsmanship that goes into every one of our timber structures will enhance your garden/outdoor living space. You will find that patios, decks, hot tubs, walkways and outdoor kitchens are all accentuated and enhanced by these beautiful wood structures.

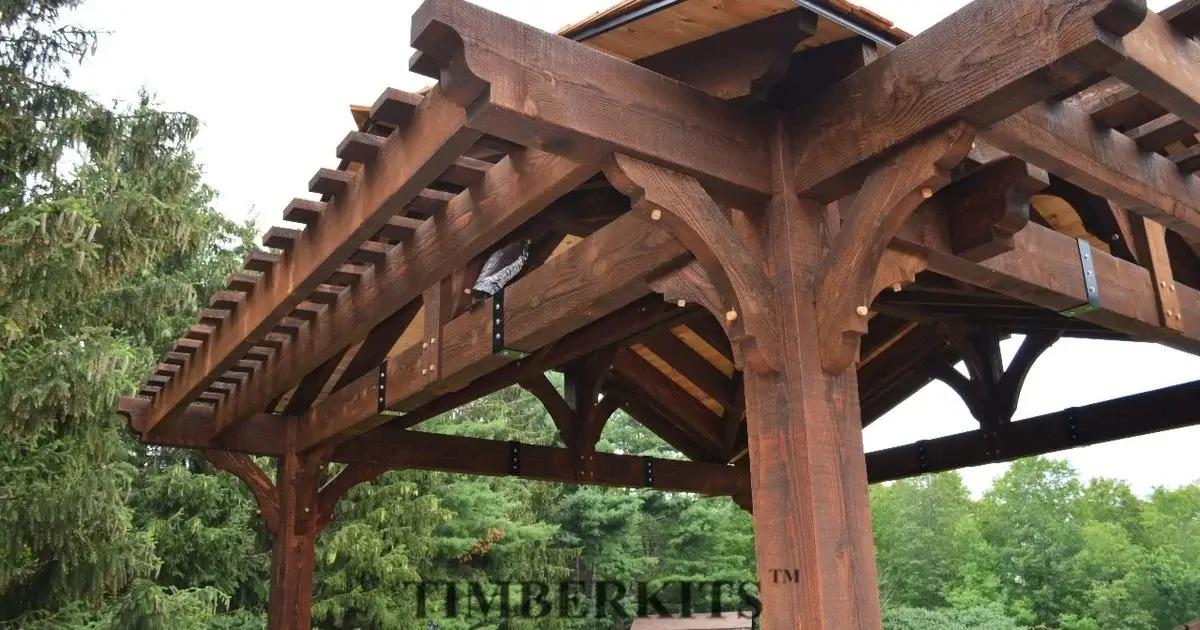

Locking Dovetail System
Our unique corner system features mortised dovetail joints which are both tapered and beveled resulting in a snug gap-less joint, which only gets tighter when other pieces are placed on top. This joint system creates strong rigid corners which maintain close fitting connections as the timbers expand and contract with Ontario's ever changing climate.
"Enjoy the ease of designing your custom timber pergola or pavilion and the convenience of having it installed in one day"
TIMBERKITS™ are easy to install
Our kits are perfect for the DIY enthusiast (and for those not so enthusiastic about doing it yourself we can always DIFY "do it for you.")
All timbers are pre-cut, pre-drilled, pre-notched, and pre-stained by experienced craftsmen. We test fit every piece in our shop to ensure installation will be quick and easy.
Please realize however, that our kits, though simple to install can be very heavy, so use caution. Most pergolas or pavilions can be completed in one afternoon with the help of a strong friend or two, two heavy-duty step ladders, and a few basic tools.
Heavy Pergola 6" x 6" x 9' Timber Posts3" x 10" Support Beams2" x 8" Timber Perlins2" x 8" Knee Braces2" x 6" Shade Boards
Super Heavy Pergola 8" x 8" x 9' Timber Posts4" x 12" Support Beams3" x 10" Timber Perlins3" x 10" Knee Braces2" x 6" Shade Boards 10" x 10" Posts (optional)

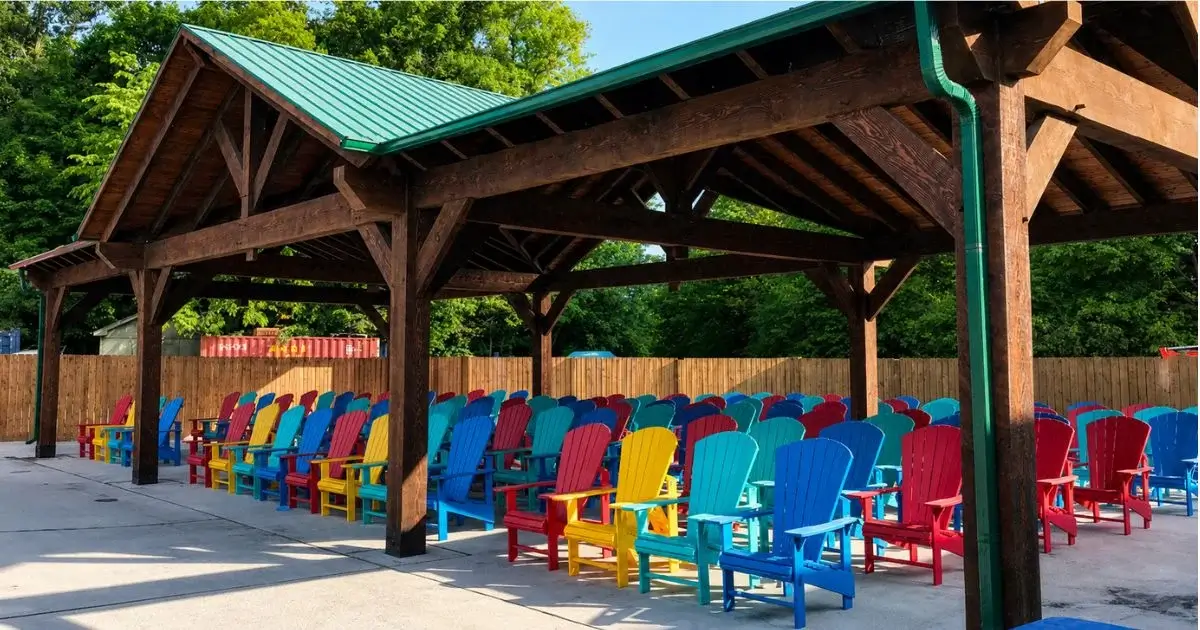

Super Heavy Pavilion 8" x 8" x 9' Timber Posts4" x 12" Support Beams6" x 12" Support Beams6" x 12" Ridge Beam8" x 8" King Posts3" x 5" Queen Post3" x 10" Rafters3" x 10" Knee Braces1" x 6" Pine T&G Roof Boards 10" x 10" Posts (optional)
TIMBERKITS™ Wood Options
TIMBERKITS uses rough sawn timbers - this means full thickness sizes. Being rough sawn doesn't mean slivers. Every structure is hand-sanded, notched and finished with your choice of premium stain (or can be left bare).
These kits are made from top quality materials including #1 Eastern White Pine, Douglas Fir, or Western Red Cedar, and come with fasteners, dowels, post base plates, and easy to follow instructions.
Purlin End Profiles (or design your own)
End Shape A End Shape B End Shape C
End Shape D End Shape E End Shape F
End Shape G
Knee Brace's add beauty and contrast to the horizontal and vertical beams and posts of your pergola/pavilion. They add strength and rigidity to your pergola and help ensure that you will not have any future twisting or warping.
Straight Curved Stepped Curved
The spacing of your pergola’s shade boards is an aesthetic choice, and does not affect the stability of the structure. However, the further apart the runners are spaced, the less shade the pergola will provide. Our kits come standard with 8" spacing.
Premium Quality Protection Australian Oil
We use premium quality oil from Cutekextreme.com.
Cutek is a synthetic oil based wood protection system that penetrates deeply into the wood where it works to control moisture from within. Cutek oils do not peel off or crack, and impart exceptional dimensional stability to the wood. Cutek enhances the natural beauty of wood without obscuring the grain while being safe. Note that all color samples here are shown on Western Red Cedar.
Autumntone Black Ash Burnt Red Browntone
Rustic Gold Sela Brown Walnut Chestnut
Clear Cedartone Grey Mist
Specially designed knife plates are included to secure your pergola/pavilion to a concrete pad, sonotube, or deck.
Hole Drilled for Electrical Wire
We drill a 1” thick hole through the center of one or more of your posts. This will allow you or your electrician to feed electrical or speaker wires inside the post without having the wire exposed to the elements or your view.
Rectangle Hole for Electrical Switch Box
We cut-out a rectangle hole in a post for you or your electrician to install a switch box for a light, fan or electrical box.
Highpoint LED Up/Down Post Lights
Highpoint’s line of professional grade landscape lighting is the perfect way to really set off your outdoor room
and make it a work of art, worthy of admiration. LED post lights feature beautiful clean styles and top quality
materials available in antique bronze on cast brass or textured black.
Highpoint Endurance 7/8" LED Recessed Lights
We pre-drill holes to countersink the lights and hide wiring.
• Energy efficient LED recessed lights.
• Transformer plugs into a standard outlet.
• Available in brushed stainless or copper.
Ornamental Post Base Plates
Deluxe Pergola Model with Purlins on All Four Sides
"We are extremely happy we met Steve from TIMBERKITS™. We were in search for 3 large pergolas for our sun deck. Beautiful product!! Highly recommend!!"
Denise & #17 Wendel Clark
Port Sandfield-Lake Rosseau
“My wife and I appreciate the great job you guys did for us. We enjoy it every day. Anyone who wants to build a high quality pergola, look no further, give these guys a call. They are honest, straight forward and up front, no hidden costs, and very pleasant to work with.
"Thanks to everyone at TIMBERKITS™ for making our dream a reality... Truly a backyard retreat."
Angelo & Rose, Richmond Hill
"A big Thank You to the TIMBERKITS™ family for creating such a beautiful center piece for our new Glamping retreat - Whispering Springs. We absolutely love it."
John & Nancy, Colborne
Request a FREE Quote.
We have the lowest prices GUARANTEED and offer FREE delivery in the greater Toronto area.
I finished our pergola and new patio this week and just wanted to say how impressed I was with the kit. Everything went together very well and the craftsmanship is amazing. We've had a lot of positive comments from friends and neighbors. Thanks again for the great pergola.
Installation was simple. Everything came labeled, numbered, and lettered. We knew exactly what went where, and it made construction that much easier! The quality of the timbers we got, the way the cuts were made, the dovetail joints, you don’t see that anymore.
We still can't get over the size of the materials. Simply Magnificent!"
Karen & Sav Mitas,
They came as scheduled and worked hard installing our pavilion. We are so happy with the way our back porch has become a quiet sanctuary to enjoy the outdoors.”
TimberKits™ will help design and build your customer a premium quality pergola or pavilion, and deliver directly to your job site three to four weeks after placing your order.
TIMBERKITS booth at the National Home Show was in our opinion the show stopper. We had TIMBERKITS install 2 pergolas in our new backyard. They did a amazing job and left the area spotless when they left. 10 out of 10!!
Nino R, Bolton
We are very impressed with the quality of our TIMBERKITS pavilion. If you're in search of a back yard pavilion that is built to last, and looks amazing call TIMBERKITS design team.
Mike, King City
Thanks so much to TIMBERKITS for the great job they did on the 60' pergola at the Ajax Down's Race Track. The pergola will be enjoyed by many for years to come.
Justin P., V.P. Ajax Down's
Enhance the curb appeal and value of your property with a high quality, hand-crafted pergola or pavilion
